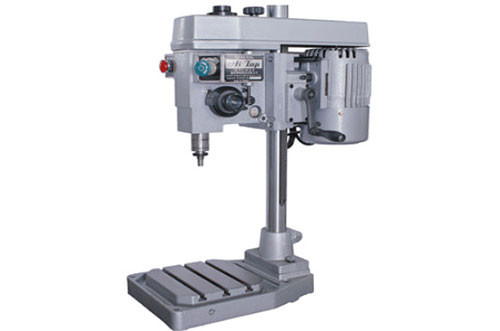

| GT1-203 Specification table | ||||||
| Maximum spindle stroke mm | 45 | |||||
| Screw diameter mm | 330 | |||||
| Screw diameter mm | M2 ～ M8 (45# steel) | |||||
| Top and lower range of head mm | 260 | |||||
| The distance between the main shaft end and the platform mm | 350 | |||||
| Workbench size mm | 225 × 230 | |||||
| Base area mm | 415 × 300 | |||||
| Shape size (long x wide x high) mm | 385×159×420 | |||||
| Motor | 3相 4P 750W (1HP) | |||||
| Spindle rotation number | 50HZ | 1340, 760, 420 | ||||
| 60HZ | 1600, 900, 500 | |||||
| Conforming to the use of this machine Automatic send pitch | The number of teeth per inch | 64, 56, 48, 44, 40, 32, 28, 24, 20, 18, 16 | ||||
| mm | 0.2, 0.25, 0.3, 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1.0, 1.25,（11.5） | |||||
| Multiaxial maximum capability (m/m standard pitch) | M3×10 axis M4×5 axis M5×2 axis | |||||
| weight | about 97kg | |||||
| >> Gyration - the precision automatic delivery combination of the tooth distance: The replaceable A, B gear and the A, B shaft and the main shaft are fully matched with the tooth pitch (without this device), which have the following advantages: 1. Vertical stability, precision and stability: Precision is quite high. Screw attack does not need to work hard when moving forward or backward, while producing excellent processing articles will not cause different threads. The soft products such as the punching machine or the light metal, the synthetic resin and other soft products can also be made to perfect thread. There is no quality instability or bad phenomenon. 2. The processing items are not jumping up when the tapping machine is processed: It is not necessary to press the processed objects by hand, while the processed objects will not jump up. 3. The operation is simple and convenient, and the efficiency of work is promoted. As the processed items are not jumping up, so long as they do not have to press the simple device of the processed objects, they can play the highest working efficiency. >> The operator's two hands are free to leave the machine. Positive rotation, reversal, positive rotation and reversal... The single cycle of continuous cycle and forward turn to reverse and stop is operated by a specific key switch. In addition, a pedal switch can be installed for selective operation, and continuous cycle and one-way circulation can be automatically operated. The hands of the operator can safely leave the machine. ·For a long time, high speed and continuous circulation, strong and durable: The GT1-203 type continuous cycle runs forty times per minute, which can be operated continuously and continuously at high speed, especially using our own electronic key switch and special motor, which can last ten million times. >> The beginner can also operate smoothly. Single acting continuous are automatic cycle operation, operator's hands can completely leave the machine, as long as the supply of processed goods, beginners and skilled persons working efficiency of the same. >> The adjustment of high precision tapping stroke is simple: Automatic reversing device can adjust the stroke of the attack freely, the shallow hole and the machined object with the bottom of the hole, and can also be easily adjusted. >> Double safety device can prevent screwdriver break loss: Spindle rotation and up and down, advance and retreat tools, special dual safety clutch, the spindle can automatically stop, reverse return does not wear cutting tools. >> The multi axis tapping device can produce high efficiency operation. It can be equipped with a multi - axis tapping device with high production efficiency. |
| ※Standard accessories: | A. Toolbox 1 B. teeth distance gear 1 groups, specifications by the customer designated C. chuck body and CT-12 1, or 3/8 "1 bits of one bit. Note: because of the continuous research and improvement of our products, the mechanical specifications of this website have the right to change, without notice. |
